MakeX was founded by a group of young engineers and designers from the Chinese city of Ningbo. The Chinese 3DP company MakeX has brought its desktop DLP 3D printer to the market via a Kickstarter campaign back in 2014. At that time, for early adopters at almost half the price of the Form1+ stereolithography 3D printer. After years of optimization there are several MakeX resin 3D-printers available for almost any market. The MakeX engineers have optimized several Liqcreate resins on the MakeX M-One Pro resin 3D-printer. If your preferred resin is not listed, contact us and we can provide starting settings for the MakeX M-One Pro 3D-printer and Liqcreate resins.

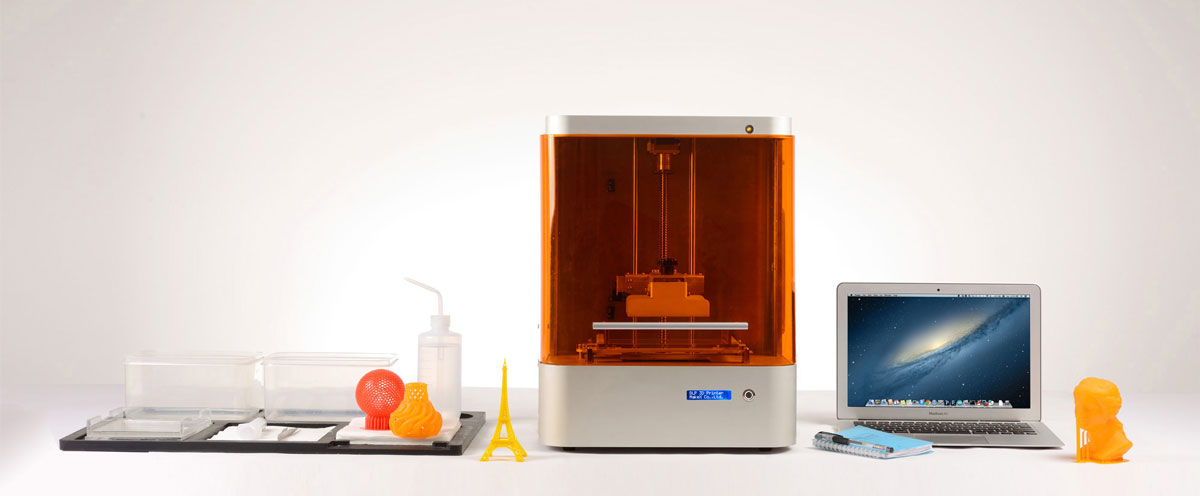

Image by MakeX: The MakeX M-one pro resin 3D-printer.
MakeX M-one Pro resin 3D-printer specifications.
| Parameters | M-One J80 | M-One D100 | M-One Pro 30 | M-One Pro 30 385 | M-One Pro 40 | M-One Pro 40 385 | M-One Pro 50 | M-One Pro 50 385 | M-One Pro 60 | M-One Pro 60 385 | M-One Pro 70 | M-One Pro 70 385 |
| Footprint | 310*310*490 mm | 310*310*450 mm | 310*310*450/490 mm | |||||||||
| Build Volume | 102*64*165 mm | 128*80*165 mm | 64*36*115 mm | 80*46*115 mm | 96*54*115/165 mm | 120*68*115/165 mm | 80*46*115 mm | 135*76*115/165 mm | ||||
| XY Resolution | 80 μm | 100 μm | 33 μm | 42.5 μm | 50 μm | 62.5 μm | 70 μm | |||||
| Z Resolution | 5 μm | |||||||||||
| Uitravlet Band | 405 nm | 405 nm | 385 nm | 405 nm | 385 nm | 405 nm | 385 nm | 405 nm | 385 nm | 405 nm | 385 nm | |
| Technology | DLP | |||||||||||
| Light Source | Industrial HD UV-LED Light Engine | |||||||||||
| Lifespan | 50000 Hrs | |||||||||||
| Connectivity | Wi-Fi, Internet & USB Divre | |||||||||||
| Touch Screen | 7″ | |||||||||||
| Supported OS | WINDOWS, MAC, LINUX | |||||||||||
| Software | XMAKER | |||||||||||
Find MakeX compatible resins
Settings are optimized for Liqcreate Strong-X, Wax Castable and Premium Model other resins can be optimized on request. The 3D-print parameters can be found in this link and start printing today with your Liqcreate resins!
