Bio-Med Clear
Liqcreate Bio-Med Clear is a rigid clear biocompatble photopolymer resin and can be processed on most resin based 3D-printers. 3D-printed parts from this material exhibit biocompatible properties when post processed according to the processing instructions1. After washing and post-curing according to the instructions, printed parts from Liqcreate Bio-Med Clear pass the biocompatibility tests of:
| ○ Cytotoxicity | ISO 10993-5:2009 |
| ○ Sensitization | ISO 10993-10:2021 |
| ○ Irritation | ISO 10993-23:2021 |

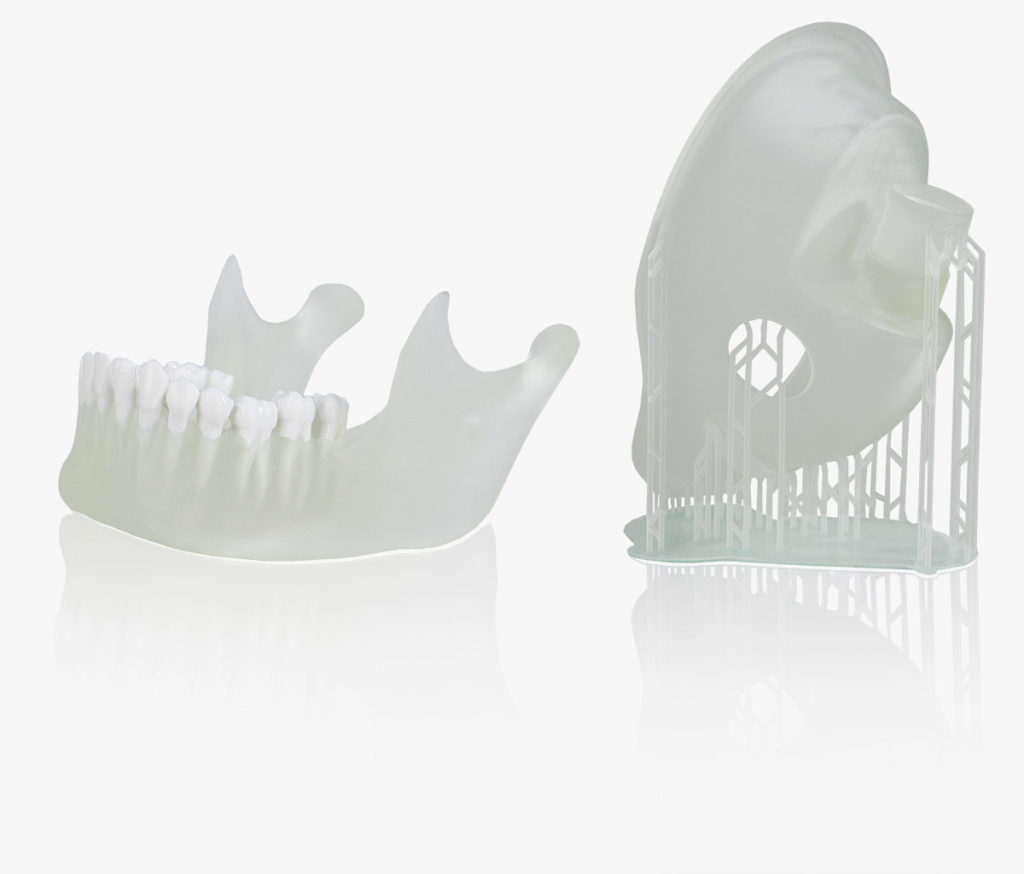

When using this product for making a regulated medical device the user must assume all the responsibility for registration and use of this device. Printed parts from Bio-Med Clear can be disinfected with commonly used disinfectants and sterilized by steam sterilization using an autoclave. This clear biocompatible resin is designed for accurate medical models, functional prototypes and applications that require stable mechanical performance.
Scroll down to: Technical specifications | Printer compatibility | Use cases | Processing instructions1
 |
 |
 |
| Biocompatible1 | Steam sterilization | High accuracy |
Price range: €40,81 through €518,13 ex. VAT
Technical specifications
A biocompatible 3D-printing resin for Digital Light Processing (DLP), Liquid Crystal Display (LCD) and laser based 3D-printers. Liqcreate Bio-Med Clear is perfect for applications that require non-cytotoxic, non-sensitizing and non-irritating features. These material properties make Bio‑Med Clear suitable for high‑precision prototypes and general medical modeling where stable mechanical behavior is important.
| Mechanical Properties | UV post-curing | ||
|---|---|---|---|
| Description | Method | Metric[2] | Imperial[2] |
| Tensile strength | D638 | 55 MPa | 8.00 ksi |
| Elongation at break | D638 | 5 – 10% | 5 – 10% |
| Tensile modulus | D638 | 2.0 GPa | 290 ksi |
| Flexural strength | D790 | 89 MPa | 12.91 ksi |
| Flexural modulus | D790 | 2.2 GPa | 319 ksi |
| Flexural strength | ISO 20795-2 | 78 MPa | 11.31 ksi |
| Flexural modulus | ISO 20795-2 | 1.7 GPa | 274 ksi |
| IZOD Impact notched | ISO 180 | 3.04 kJ/m2 | 1.45 ft-lb/in2 |
| IZOD Impact notched | D256 | 28 J/m | 0.53 ft-lb/in |
| Water sorption | D570-98 | 0.54% | 0.54% |
| Degradation temperature | Internal method | >250°C[3] | >482°F[3] |
| HDT-B 0.45 MPa | ISO75 | 62°C | 144°F |
| HDT-A 1.80 MPa | ISO75 | 48°C | 118°F |
| Shore D Hardness | D2240 | 85 | 85 |
| Cytotoxicity | ISO 10993-5 | pass | pass |
| Sensitization | ISO 10993-10 | pass | pass |
| Irritation | ISO 10993-23 | pass | pass |
[1]Follow the processing instructions to obtain biocompatible parts. [2]Washed in IPA for 2 x 3 minutes in an ultrasonic cleaner. The second wash cycle is performed in fresh IPA followed by 30 minutes resting and post-curing for 30 minutes with LED at 60°C in the Wicked Engineering Curebox. These values may vary and depend on individual machine processing and post-curing. [3]Softening above HDT, but no cracking in part up to 250°C / 482°F.
Tilt screen to see the complete technical specifications table

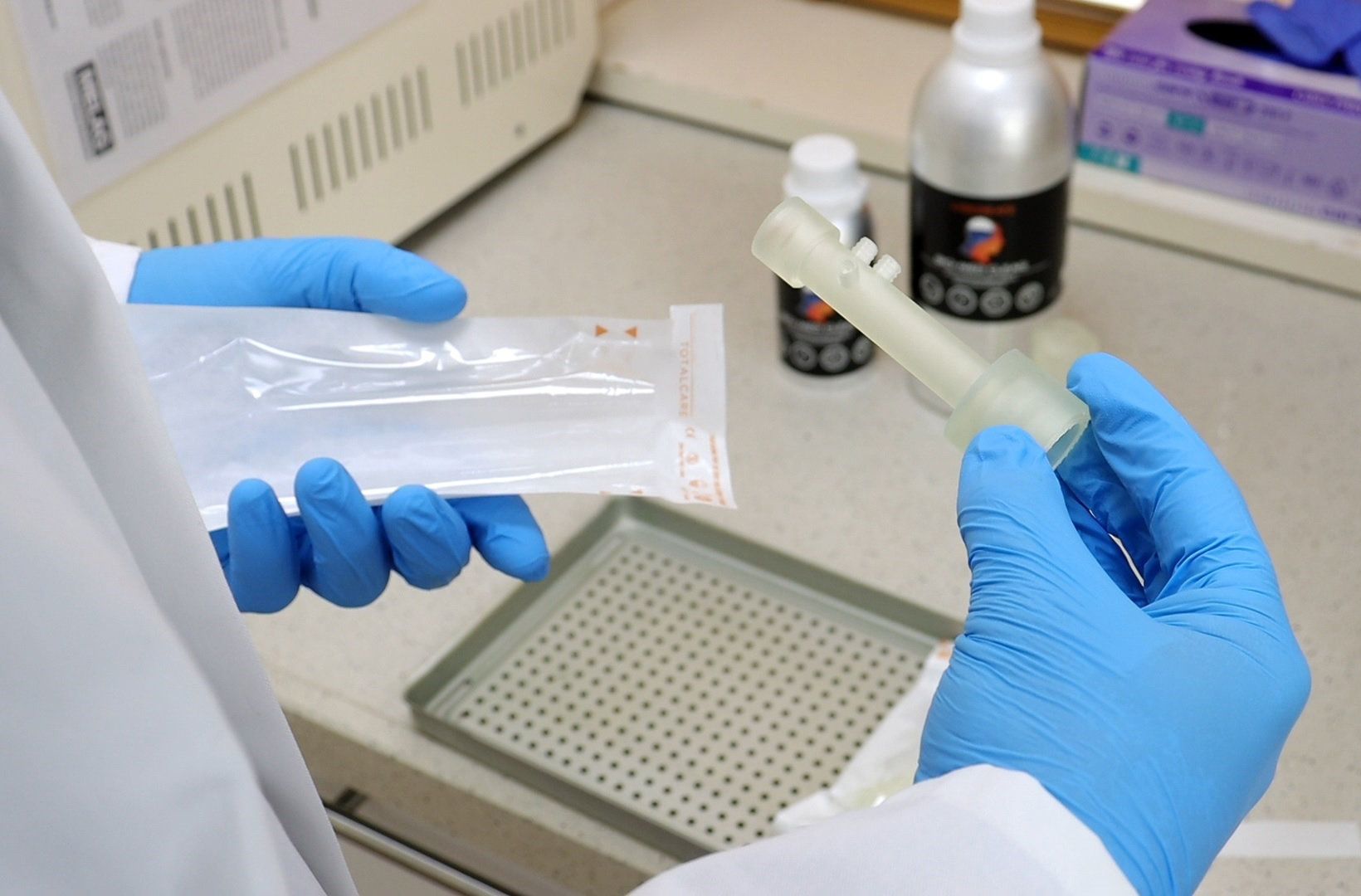

Steam sterilization & desinfection
Printed parts from Bio-Med Clear can be disinfected with commonly used disinfectants and sterilized by steam sterilization using an autoclave. Standard steam sterilization programs have been validated at 121°C / 250 °F and at 134°C / 273°F for this biocompatible resin.
| Description | Method | After UV-cure | After steam sterilization 121°C | After steam sterilization 134°C |
|---|---|---|---|---|
| Flexural strength | ISO 20795-2 | 78 MPa | 75 MPa | 73 MPa |
| Flexural modulus | ISO 20795-2 | 1.7 GPa | 2.2 GPa | 2.2 GPa |
| Flexural strength | ASTM 790 | 89 MPa | 80 MPa | 75 MPa |
| Flexural modulus | ASTM 790 | 2.2 GPa | 2.5 GPa | 2.4 GPa |
| Description | Method | After UV-cure | 70% IPA based | 99% IPA based | 70% Ethanol based | 99% Ethanol based |
|---|---|---|---|---|---|---|
| Flexural strength | ASTM 790 | 89 MPa | 90 MPa | 90 MPa | 88 MPa | 84 MPa |
| Flexural modulus | ASTM 790 | 2.2 GPa | 2.3 GPa | 2.3 GPa | 2.2 GPa | 2.1 GPa |
| Description | Value |
|---|---|
| Appearance | Clear liquid |
| Viscosity | 475 mPa⋅s at 25°C |
| Density | 1.18 g/cm3 |
| Ec (405nm) | 6.10 mJ/cm2 |
| Dp (405nm) | 0.12 mm |
| Ec (385nm) | 4.10 mJ/cm2 |
| Dp (385nm) | 0.05 mm |
More information
Values may vary and depend on individual machine processing and post-curing and therefor it is important to follow the instructions of Liqcreate Bio-Med Clear resin carefully to achieve biocompatible properties. For extra details, download the technical data sheet or user guide.
⤓ Technical Data Sheet ⤓ User Guide ⤓ Processing Instructions
Processing instructions to obtain biocompatible properties
New to resin 3D-printing, or a seasoned professional, it is advised to scroll through the processing instructions. Detailed information on how to obtain biocompatible resin end products, printing parameters, support settings, cleaning, washing, post-curing, part orientation, shrinkage compensation, minimum wall thickness and other resin behaviour can be found in the link.
| H317: May cause an allergic skin reaction. |
| H413: May cause long lasting harmful effects to aquatic life. |
3D Printer compatibility
Do you want to use Liqcreate Bio-Med Clear resin? Check if Bio-Med Clear printing settings are available on our website for your printer! Find validated print settings for your printer in our resin parameter database. Contact us if your printer is not listed.
| Printer name | Compatible? |
| NextDent LCD1 | Yes |
| Sinergia Print by Nobil Metal | Yes |
| Asiga Max UV | Yes |
| Asiga Max 2 | Yes |
| Asiga Pro 4K | Yes |
| Asiga Ultra | Yes |
| Martrix300 | Yes |
| Martrix520 | Yes |
| Evodent E128 | Yes |
| Prusa SL1S Speed | Yes |
| Prusa Medical One | Yes |
| Shining3D AccuFab-L4K | Yes |
| Raise3D DF2 | Yes |
| Raise3D DF2+ | Yes |
| W2P SolFlex 150 | Yes |
| W2P SolFlex 163FHD | Yes |
| W2P SolFlex 170 | Yes |
| W2P SolFlex 250UHD | Yes |
| W2P SolFlex 350 | Yes |
| W2P SolFlex 363 | Yes |
| W2P SolFlex 650 | Yes |
| W2P SolLab 370 | Yes |
| atum3D DLP Station 5-405 | Yes |
| atum3D DLP station 5-405 EXZ | Yes |
| Anycubic Photon | Yes |
| Anycubic Photon S | Yes |
| Anycubic Photon Mono | Yes |
| Anycubic Photon Mono 2 | Yes |
| Anycubic Photon Mono 4 | Yes |
| Anycubic Photon Mono 4 Ultra | Yes |
| Anycubic Photon Mono SE | Yes |
| Anycubic Photon Mono X | Yes |
| Anycubic Photon Mono X 6Ks | Yes |
| Anycubic Photon M3 | Yes |
| Anycubic Photon M3 Plus | Yes |
| Anycubic Photon M3 Max | Yes |
| Anycubic Photon Mono M5s | Yes |
| Anycubic Photon Mono M5s Pro | Yes |
| Anycubic Photon Mono M7 Pro | Yes |
| Anycubic Photon Mono M7 Max | Yes |
| Anycubic Photon Ultra | Yes |
| Anycubic Photon D2 | Yes |
| Epax3D X1N | Yes |
| Flashforge Focus 6K | Yes |
| Flashforge Hunter S | Yes |
| Uniformation GKTwo | Yes |
| Elegoo Mars 2 | Yes |
| Elegoo Mars 3 | Yes |
| Elegoo Mars 4 | Yes |
| Elegoo Mars 4 Ultra | Yes |
| Elegoo Mars 4 DLP | Yes |
| Elegoo Mars 5 | Yes |
| Elegoo Mars 5 Ultra | Yes |
| Elegoo Saturn | Yes |
| Elegoo Saturn 8K | Yes |
| Elegoo Saturn 3 | Yes |
| Elegoo Saturn 3 Ultra | Yes |
| Elegoo Saturn 4 Ultra | Yes |
| Elegoo Saturn 4 Ultra 16K | Yes |
| Peopoly Phenom Prime | Yes |
| Creality Halot-One | Yes |
| Creality Halot-Sky 6K 2022 | Yes |
| Creality Halot-Mage Pro 8K | Yes |
| Creality Halot-Mage S 14K | Yes |
| Phrozen Sonic Mini | Yes |
| Phrozen Sonic Mini 4K | Yes |
| Phrozen Sonic Mini 8K | Yes |
| Phrozen Sonic Mini 8K S | Yes |
| Phrozen Sonic Mighty 4K | Yes |
| Phrozen Sonic Mighty 8K | Yes |
| Phrozen Sonic Mighty Revo 14K | Yes |
| Phrozen Sonic Mega 8K | Yes |
| Phrozen Sonic Mega 8K S | Yes |
| Phrozen Sonic Mega 8K V2 | Yes |
| Phrozen Sonic XL 4K 2022 | Yes |
| Phrozen Sonic XL 4K Plus | Yes |
| Phrozen Lumii DLP | Yes |
| Nexa3D XiP | Yes (open license) |
| Formlabs Form 2 | Not compatible |
| Formlabs Form 4L | Yes (open license) |
| 385 – 420nm MSLA, SLA & DLP printer | Contact us |

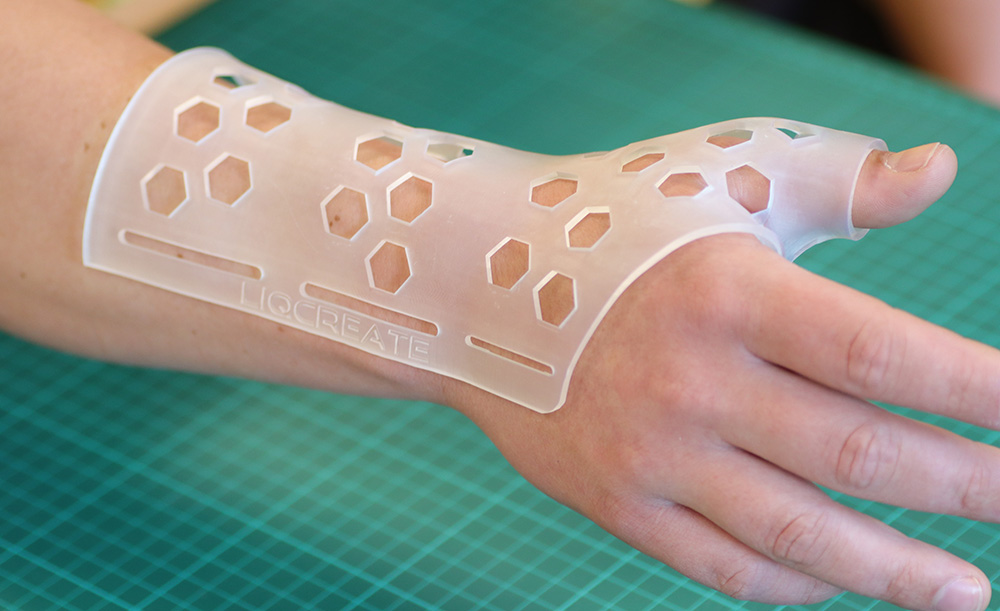

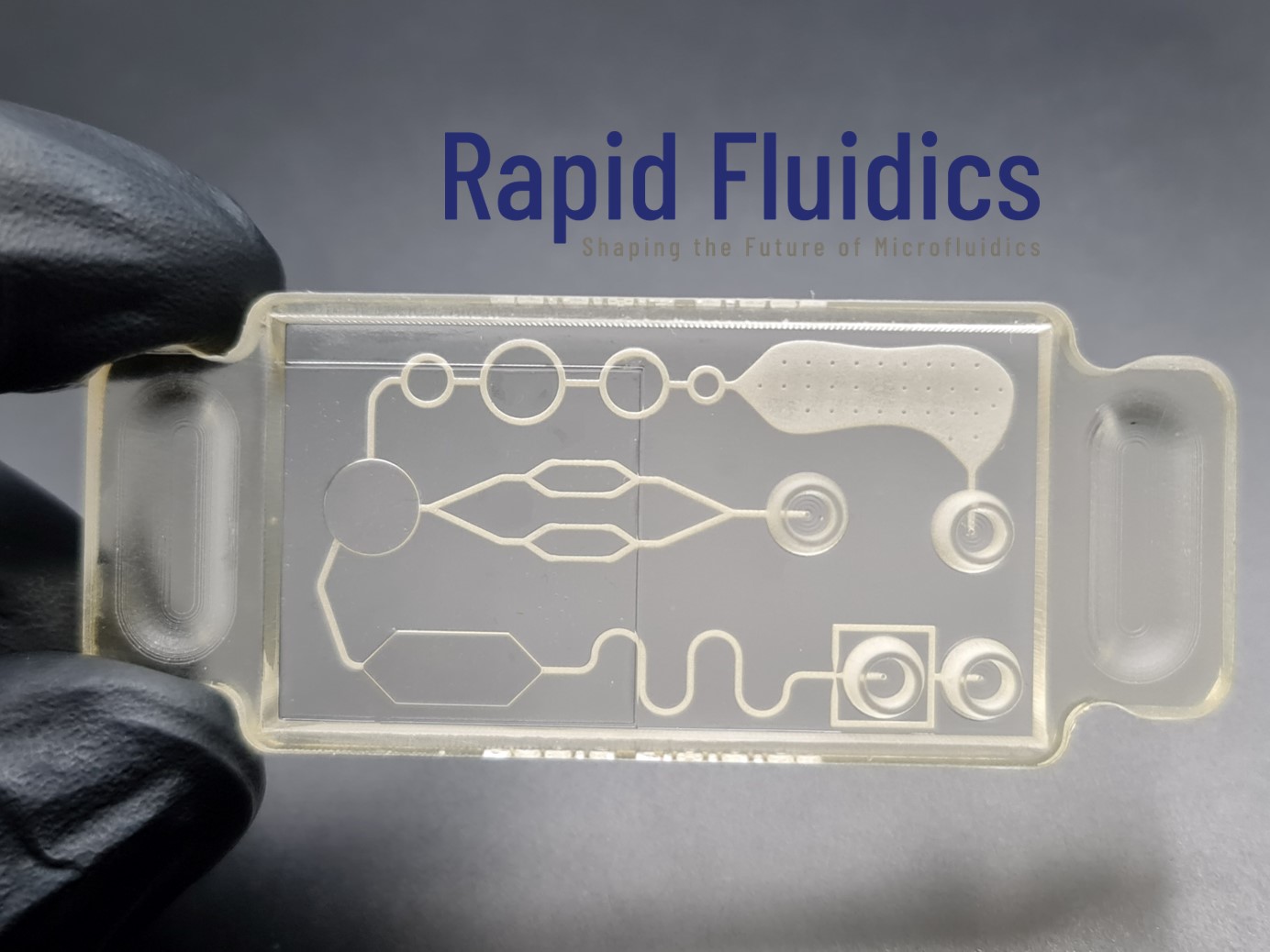

Bio-Med Clear use cases
Bio-Med Clear is a biocompatible 3D-printing resin for Digital Light Processing (DLP), Liquid Crystal Display (LCD / MSLA) and laser based resin 3D-printers. Liqcreate Bio-Med Clear is perfect for applications that require biocompatible features like non-cytotoxic, non-sensitizing and non-irritating.
| Weight | N/A |
|---|---|
| Printer compatibility | SLA, DLP, LCD |
