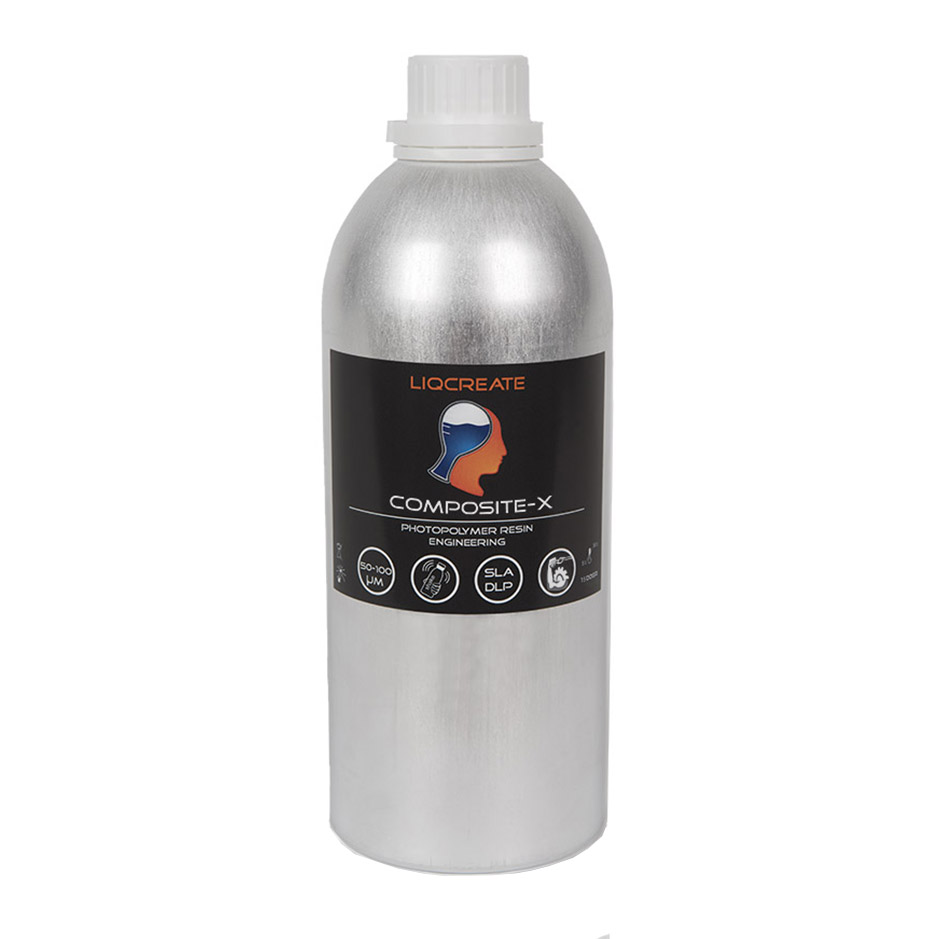

Composite-X
Liqcreate Composite-X is an extremely rigid and high performance reinforced nano-micro composite resin for SLA, DLP & LCD / MSLA in the range of 385 – 420nm. Perfect for rapid tooling, wind tunnel testing and industrial applications.
Liqcreate Composite-X is one of the stiffest and strongest material available in the market. It has a flexural modulus over 9000 MPa and a flexural strength of 150 – 170 MPa. The material can be used after UV-post curing, or the properties can be boosted with a thermal cure. This material has features like excellent chemical resistance, high strength and high stiffness.
Scroll down to: Technical specifications | Printer compatibility | Use cases | Processing instructions
 |
 |
 |
|
High |
Nano reinforced |
Low shrinkage |
Price range: €60,95 through €968,72 ex. VAT
Technical specifications
Liqcreate Composite-X has a flexural modulus over 9000 MPa and a flexural strength of 150 – 170 MPa. The material can be used after UV-post curing, or the properties can be boosted with a thermal cure. Composite-X features an excellent chemical resistance, high strength and high stiffness, perfect for rapid tooling, wind tunnel testing and industrial applications.
| Mechanical Properties | Metric[1] | ||
|---|---|---|---|
| Description | Method | UV curing 60 min. at 60°C | UV curing 60 min. at 60°C & thermal curing 120 min. at 100°C |
| Tensile strength | D638 | 50 – 75 MPa | 70 – 85 MPa |
| Tensile modulus | D638 | 7.5 – 8.5 GPa | 8.5 – 9.5 GPa |
| Elongation at break | D638 | 1% | 1% |
| Flexural strength | D790 | 140 – 150 MPa | 150 – 170 MPa |
| Flexural modulus | D790 | 7.5 – 8.5 GPa | 8.5 – 9.5 GPa |
| IZOD Impact (notched) | D256A | 19 J/m | 18 J/m |
| Shore D Hardness | D2240 | 93 | 94 |
| Water sorption | D570-98 | 0.67% | 0.59% |
| Linear Shrinkage during printing | Internal method | <0.1% | <0.1% |
| Linear Shrinkage during UV-curing | Internal method | 0.5% | 0.5% |
| Linear Shrinkage during thermal cure | Internal method | 0.1% | 0.1% |
| Compression strength | D695 | 155 MPa | 160 MPa |
| Density solid | Internal method | 1.62 g/cm3 | 1.62 g/cm3 |
| HDT-B 0.45 MPa | ISO75 | 77°C | 86°C |
| Degradation temperature | Internal method | >200°C[2] | >200°C[2] |
[1]Post-cured in the Wicked Engineering Curebox. These values may vary and depend on individual machine processing and post-curing. [2]Discoloration at 200°C, no cracking in part up to 200°C / 392°F.
Tilt screen to see the complete technical specifications table
| Description | Value |
|---|---|
| Appearance | Opaque white liquid |
| Viscosity | 1400 cps at 25°C |
| Density | 1.52 g/cm3 |
| Ec (405nm) | 9.55 mJ/cm2 |
| Dp (405nm) | 0.18 mm |
| Ec (385nm) | 14.30 mJ/cm2 |
| Dp (385nm) | 0.11 mm |
More information
Values may vary and depend on individual machine processing and post-curing. For extra details, download the technical data sheet or user guide.
Processing instructions
New to resin 3D-printing, or a seasoned professional, it is advised to scroll through the processing instructions. Detailed informatin on printing parameters, support settings, cleaning, washing, post-curing, part orientation, shrinkage compensation, minimum wall thickness and other resin behaviour can be found in the link.
| H315: Causes skin irritation. |
| H317: May cause an allergic skin reaction. |
| H319: Causes serious eye irritation. |
3D Printer compatibility
Do you want to use Composite-X? Check if settings are available on our website for your printer!
| Printer name | Compatible? |
| atum3D DLP Station 5 | Yes |
| UnionTech Martrix300 | Yes |
| Shining3D AccuFab-L4K | Yes |
| Ackuretta Freeshape 120 | Yes |
| Prusa SL1 | Yes |
| Prusa SL1S Speed | Yes |
| 3DWare Zeta 4K | Yes |
| Anycubic Photon | Yes |
| Anycubic Photon Mono | Yes |
| Anycubic Photon Mono 4 | Yes |
| Anycubic Photon Mono 4K | Yes |
| Anycubic Photon Mono 4 Ultra | Yes |
| Anycubic Photon Mono SE | Yes |
| Anycubic Photon Mono X | Yes |
| Anycubic Photon Mono X 6K | Yes |
| Anycubic Photon M3 | Yes |
| Anycubic Photon M3 Plus | Yes |
| Anycubic Photon M3 Max | Yes |
| Anycubic Photon Mono M5s Pro | Yes |
| Anycubic Photon Mono M7 Pro | Yes |
| Anycubic Photon D2 | Yes |
| Elegoo Mars | Yes |
| Elegoo Mars 2 | Yes |
| Elegoo Mars 3 | Yes |
| Elegoo Mars 4 | Yes |
| Elegoo Mars 4 Ultra | Yes |
| Elegoo Mars 5 | Yes |
| Elegoo Saturn | Yes |
| Elegoo Saturn 2 | Yes |
| Elegoo Saturn 3 | Yes |
| Uniformation GKTwo | Yes |
| Uniformation GK3 | Yes |
| Phrozen Sonic Mini 4K | Yes |
| Phrozen Sonic Mini 8K | Yes |
| Phrozen Sonic Mini 8K S | Yes |
| Phrozen Sonic Mighty 4K | Yes |
| Phrozen Sonic Mighty Revo 14K | Yes |
| Phrozen Sonic Mega 8K V2 | Yes |
| Peopoly Phenom L | Yes |
| Zortrax Inkspire | Yes |
| Zortrax Inkspire 2 | Yes |
| Peopoly Phenom Prime | Yes |
| Creality LD-002H | Yes |
| Creality Halot-Sky | Yes |
| Creality Halot-Mage Pro 8K | Yes |
| Creality Halot-Mage S 14K | Yes |
| PicoFAB 4K | Yes |
| Nexa3D XiP | Yes (open license) |
| Intrepid Automation Epic production system | Yes |
| Intrepid Automation Epic development kit | Yes |
| Raise3D DF2 | Yes |
| Sinergia Print by Nobil Metal | Yes |
| Asiga Freeform PICO | Yes |
| Asiga Max UV & Pro 4K | Not compatible |
| 385 – 420nm MSLA, SLA & DLP printer | Contact us |

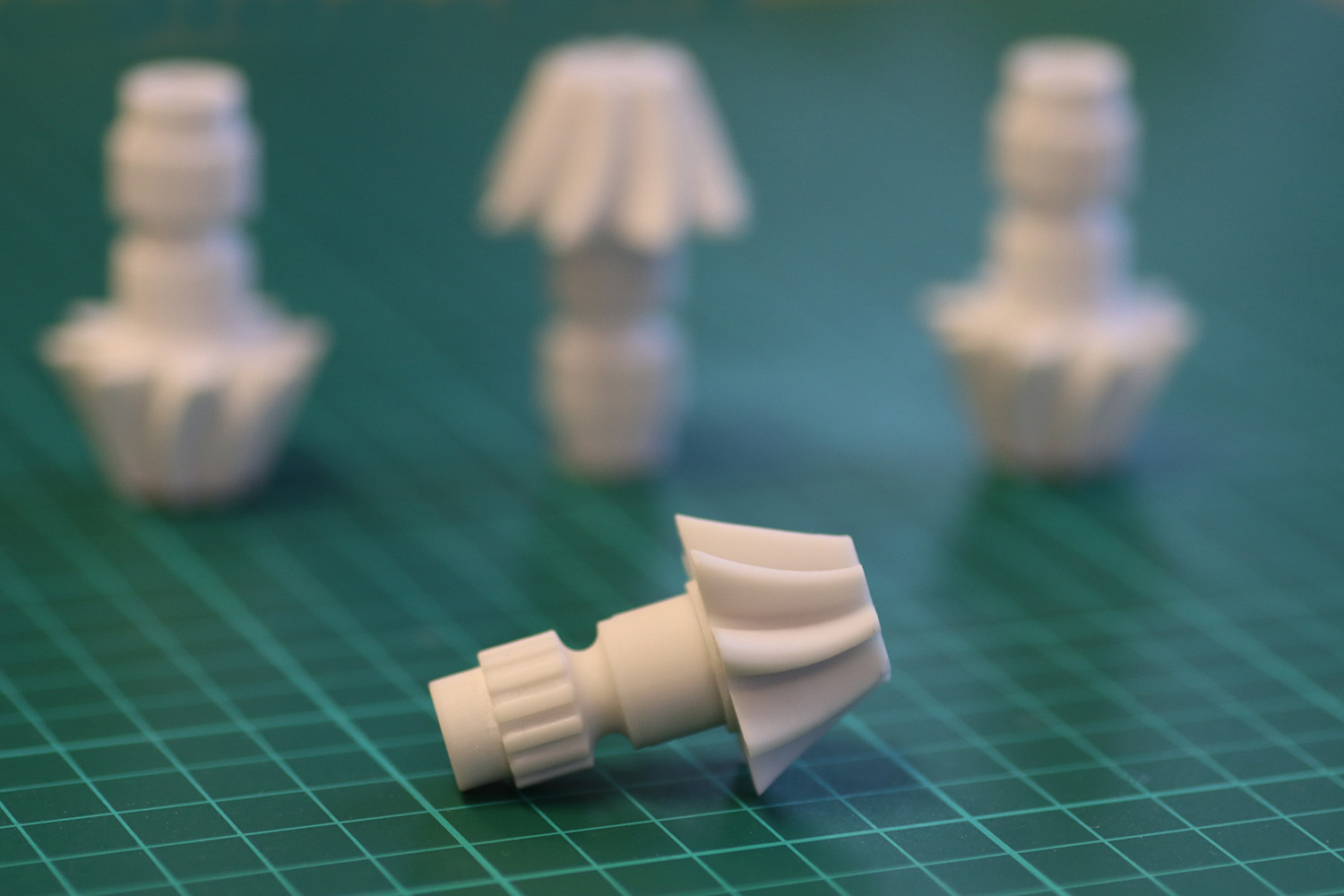

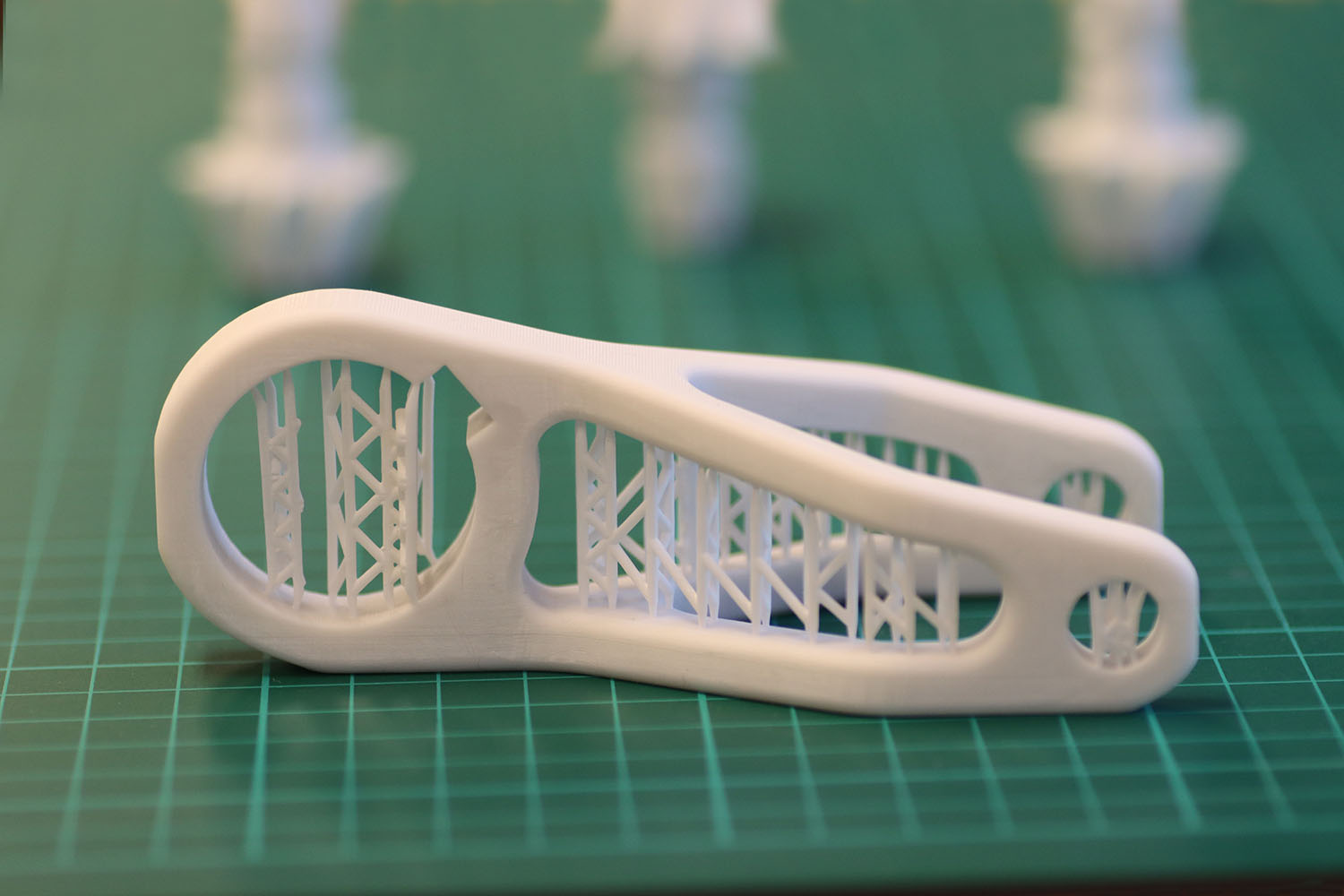

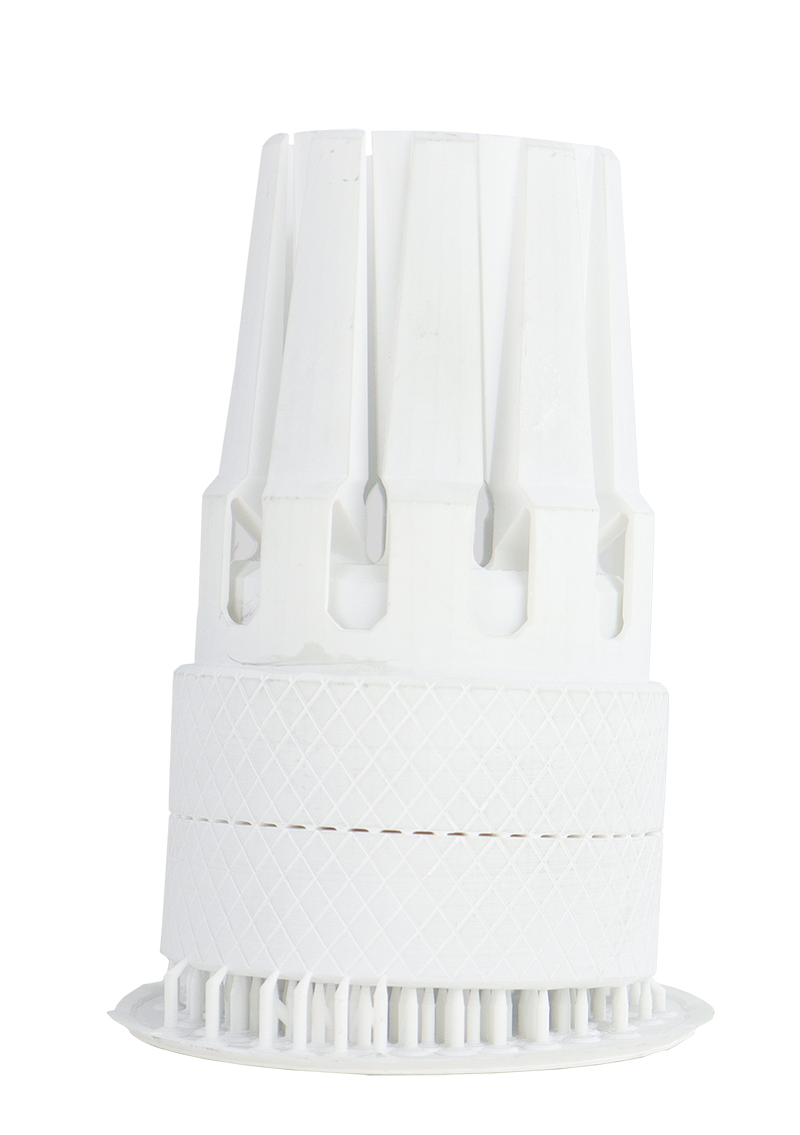

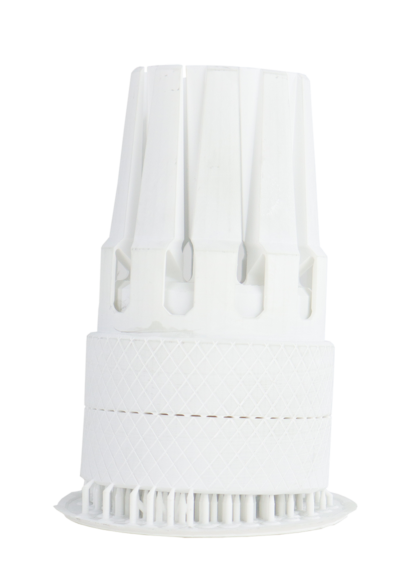

Composite-X use cases
Liqcreate Composite-X has features like excellent chemical resistance, high strength and high stiffness which makes it ideal for wind tunnel testing, fluid flow components, automotive and heavy duty industrial applications.
| Weight | N/A |
|---|---|
| Printer compatibility | SLA, DLP, LCD |
