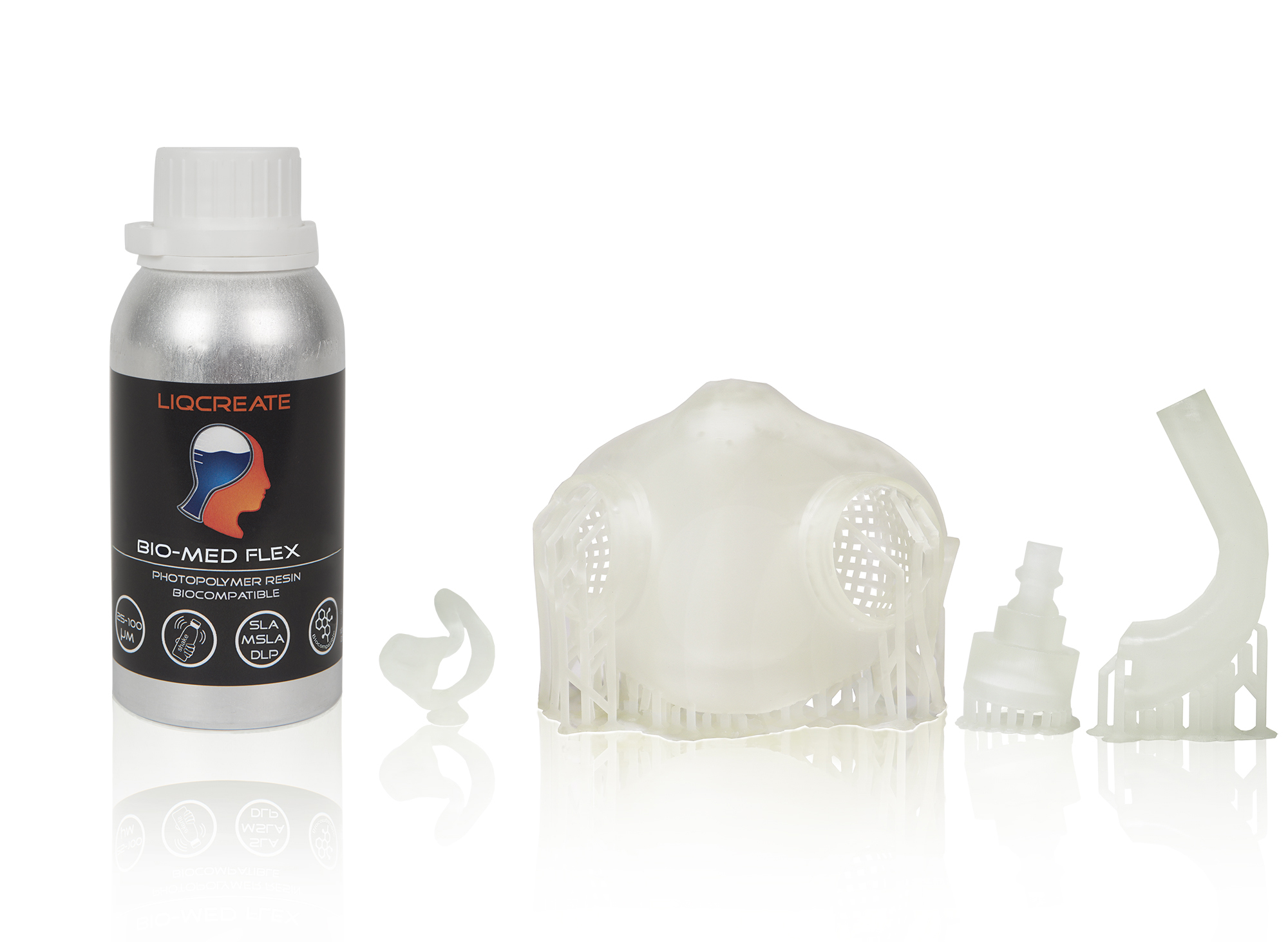

Bio-Med Flex
Liqcreate Bio-Med Flex is a Shore A73 flexible biocompatble photopolymer resin and can be processed on most resin based 3D-printers. 3D-printed parts from this material exhibit biocompatible properties when post processed according to the processing instructions1. After washing and post-curing according to the instructions, printed parts from Liqcreate Bio-Med Flex pass the biocompatibility tests of:
| ○ Cytotoxicity | ISO 10993-5:2009 |
| ○ Sensitization | ISO 10993-10:2021 |
| ○ Irritation | ISO 10993-23:2021 |
When using this product for making a regulated medical device the user must assume all the responsibility for registration and use of this device. Printed parts from Bio-Med Flex can be disinfected with commonly used disinfectants and sterilized by steam sterilization using an autoclave.
Scroll down to: Technical specifications | Printer compatibility | Use cases | Processing instructions1
 |
 |
 |
| Biocompatible1 | Steam sterilization | Flexible |
Price range: €109,90 through €626,43 ex. VAT
Technical specifications
A flexible biocompatible 3D-printing resin for Digital Light Processing (DLP), Liquid Crystal Display (LCD) and laser based 3D-printers. Liqcreate Bio-Med Flex is perfect for applications that require non-cytotoxic, non-sensitizing and non-irritating features.
| Mechanical Properties | UV post-curing | ||
|---|---|---|---|
| Description | Method | Metric[2] | Imperial[2] |
| Tensile strength | D638 | 5.0 MPa | 0.73 ksi |
| Elongation at break | D638 | 180 – 250% | 180 – 250% |
| Water sorption | D570-98 | 0.76% | 0.76% |
| Tear strength | D624 | 20 – 28 kN/m | 114 – 160 lbf/in |
| Shore A Hardness | D2240 | 73 | 73 |
| Cytotoxicity | ISO 10993-5 | pass | pass |
| Sensitization | ISO 10993-10 | pass | pass |
| Irritation | ISO 10993-23 | pass | pass |
[1]Follow the processing instructions to obtain biocompatible parts. [2]Washed in IPA for 2 x 3 minutes in an ultrasonic cleaner. The second wash cycle is performed in fresh IPA followed by 60 minutes resting. UV post-curing for 10 minutes immersed in a transparent cup of water, followed by 120 minutes at 60°C in the Formlabs Formcure(1st generation). These values may vary and depend on individual machine processing and post-curing.
Tilt screen to see the complete technical specifications table
Steam sterilization & desinfection
Printed parts from Bio-Med Flex can be disinfected with commonly used disinfectants and sterilized by steam sterilization using an autoclave. Standard steam sterilization programs have been validated at 121°C / 250 °F and at 134°C / 273°F for this biocompatible resin.
| Description | Method | After UV-cure | After steam sterilization 121°C | After steam sterilization 134°C |
|---|---|---|---|---|
| Tensile strength | D638 | 5.0 MPa | 3.7 MPa | 3.6 MPa |
| Elongation at break | D638 | 240% | 183% | 166% |
| Tear strength | D624 | 22 kN/m | 18 kN/m | 21 kN/m |
| Shore A | D2240 | 73 | 70 | 75 |
| Description | Method | After UV-cure | 70% IPA based | 99% IPA based | 70% Ethanol based | 99% Ethanol based |
|---|---|---|---|---|---|---|
| Tensile strength | D638 | 5.0 MPa | 3.4 MPa | 3.3 MPa | 3.5 MPa | 3.6 MPa |
| Elongation at break | D638 | 240 % | 233 % | 231 % | 242 % | 238 % |
| Tear strength | D624 | 22 kN/m | 21 kN/m | 20 kN/m | 20 kN/m | 22 kN/m |
| Shore A | D2240 | 73 | 74 | 71 | 72 | 71 |
| Description | Value |
|---|---|
| Appearance | Clear liquid |
| Viscosity | 850 mPa⋅s at 25°C |
| Density | 1.12 g/cm3 |
| Ec (405nm) | 7.84 mJ/cm2 |
| Dp (405nm) | 0.16 mm |
| Ec (385nm) | 4.48 mJ/cm2 |
| Dp (385nm) | 0.07 mm |
More information
Values may vary and depend on individual machine processing and post-curing and therefor it is important to follow the instructions of Liqcreate Bio-Med Flex resin carefully to achieve biocompatible properties. For extra details, download the technical data sheet or user guide.
⤓ Technical Data Sheet ⤓ User Guide ⤓ Processing Instructions
Processing instructions to obtain biocompatible properties
New to resin 3D-printing, or a seasoned professional, it is advised to scroll through the processing instructions. Detailed information on how to obtain biocompatible resin end products, printing parameters, support settings, cleaning, washing, post-curing, part orientation, shrinkage compensation, minimum wall thickness and other resin behaviour can be found in the link.
| H315: Causes skin irritation. |
| H317: May cause an allergic skin reaction. |
| H332: Harmful if inhaled. |
| H411: Toxic to aquatic life with long lasting effects |
3D Printer compatibility
Do you want to use Liqcreate Bio-Med Flex resin? Check if Bio-Med Flex printing settings are available on our website for your printer! Contact us if your printer is not listed.
| Printer name | Compatible? |
| Sinergia Print by Nobil Metal | Yes |
| Asiga Max UV | Yes |
| Asiga Max 2 | Yes |
| Asiga Pro 4K | Yes |
| Asiga Ultra | Yes |
| Prusa SL1S Speed | Yes |
| Prusa Medical One | Yes |
| Shining3D AccuFab-L4K | Soon available |
| Raise3D DF2 | Soon available |
| Raise3D DF+ | Soon available |
| Anycubic Photon S | Yes |
| Anycubic Photon Mono | Yes |
| Anycubic Photon Mono 2 | Yes |
| Anycubic Photon Mono 4 | Yes |
| Anycubic Photon Mono 4 Ultra | Yes |
| Anycubic Photon Mono SE | Yes |
| Anycubic Photon Mono X | Yes |
| Anycubic Photon Mono X 6Ks | Yes |
| Anycubic Photon M3 | Yes |
| Anycubic Photon M3 Plus | Yes |
| Anycubic Photon Mono M5s | Yes |
| Anycubic Photon Mono M5s Pro | Yes |
| Anycubic Photon Mono M7 Pro | Yes |
| Anycubic Photon Ultra | Yes |
| Anycubic Photon D2 | Yes |
| Uniformation GKTwo | Yes |
| Elegoo Mars 2 | Yes |
| Elegoo Mars 3 | Yes |
| Elegoo Mars 4 | Yes |
| Elegoo Mars 5 | Yes |
| Elegoo Mars 5 Ultra | Yes |
| Elegoo Saturn | Yes |
| Elegoo Saturn 3 | Yes |
| Elegoo Saturn 4 Ultra | Yes |
| Elegoo Saturn 4 Ultra 16K | Yes |
| Creality Halot-One | Yes |
| Creality Halot-Mage Pro 8K | Yes |
| Phrozen Sonic Mini 4K | Yes |
| Phrozen Sonic Mini 8K S | Yes |
| Phrozen Sonic Mini 8K | Yes |
| Phrozen Sonic Mighty Revo 14K | Yes |
| Formlabs Form 2 | Not compatible |
| 385 – 420nm MSLA, SLA & DLP printer | Contact us |

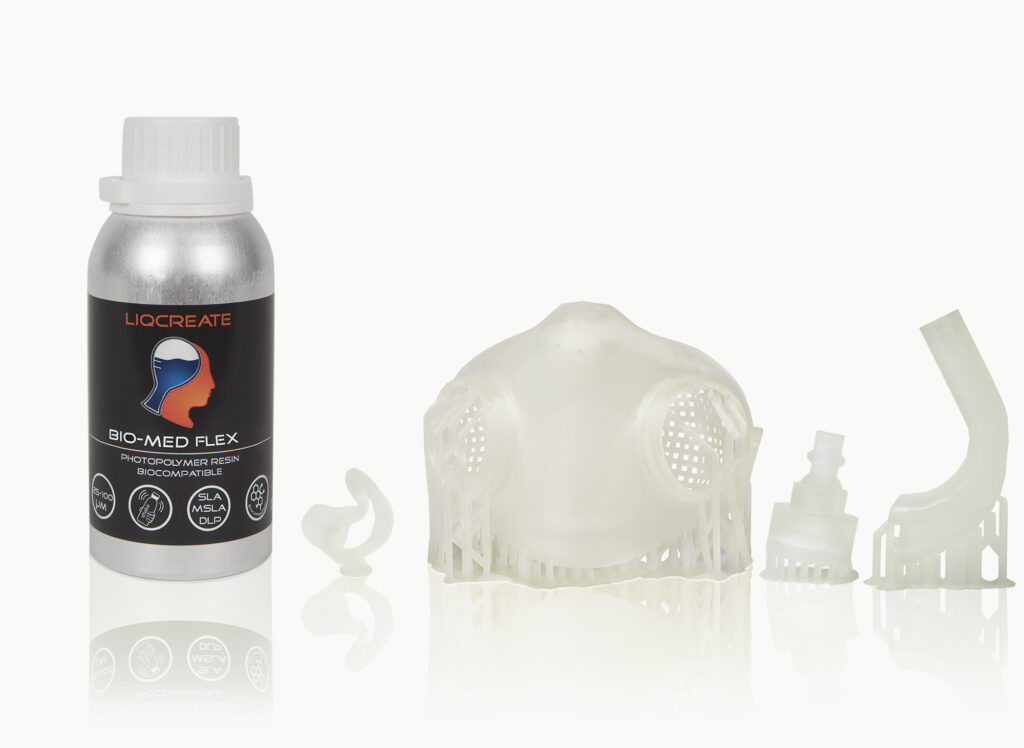

Bio-Med Flex use cases
Bio-Med Flex is a flexible biocompatible 3D-printing resin for Digital Light Processing (DLP), Liquid Crystal Display (LCD / MSLA) and laser based resin 3D-printers. Liqcreate Bio-Med Flex is perfect for applications that require biocompatible features like non-cytotoxic, non-sensitizing and non-irritating.
| Weight | N/A |
|---|---|
| Printer compatibility | SLA, DLP, LCD |
