Liqcreate and Meccatronicore (MTC) collaborate to make materials available for their new Dentum Studio, dental resin 3D-printer. The Liqcreate team would like to thank MTC for the cooperation. Additional profiles will be available soon. The Dentum Studio printer utilizes a 9K resolution LCD screan. This gives an adeal printing resolution allows the creation of precise dental applications. The powerful UV output and accurate printing profiles make part creation reliable and fast complete in every aspect. Qualified resin printing profiles and a heated chamber are more unique features of this printer. Next to that, the Dentum Studio resin 3D-printing system open to the use of third-party resins.
Technical features of Dentum Studio dental resin 3D-printer.
- – Dimensions: 335 x 340 x 485 mm
- – Printing area: 160 x 85 x 150 mm
- – Printing Technology: LCD
- – Resolution:LCD 9K with 8520 x 4320 pixels (XY)
- – Wavelength: 405 nm
- – Speed: 50mm/h (resin dependant)
- – Interface: 7” TFT touch screen
- – Layer Resolution: 25-100 μ
- – Heated print chamber
- – Touch screen heating control
- – Slicing Software:3D Formware,Chitubox
- – Connectivity: WiFi 2.4/5 Ghz- Ethernet
- – Supply voltage: 100-230V 50-60Hz
Dentum Studio – by Meccatronicore- resin 3D-printing parameters.
| Resin | Layer thickness | Parameters available in file? | Remark |
| Dental Model | 100 µm | Soon | |
| Pro Beige | 50 µm | Soon | |
| Dental Model | 100 µm | Soon | |
| Pro Grey | 50 µm | Soon | |
| Gingiva Mask | 100 µm | Soon | |
| 50 µm | Soon | ||
| Premium Model | 100 µm | Yes | |
| 50 µm | Yes | ||
| Wax Castable | 100 µm | Yes | |
| 50 µm | Yes | ||
| 30 µm | Yes | ||
About the Dentum Studio 9K MSLA 3D-printer by MTC.

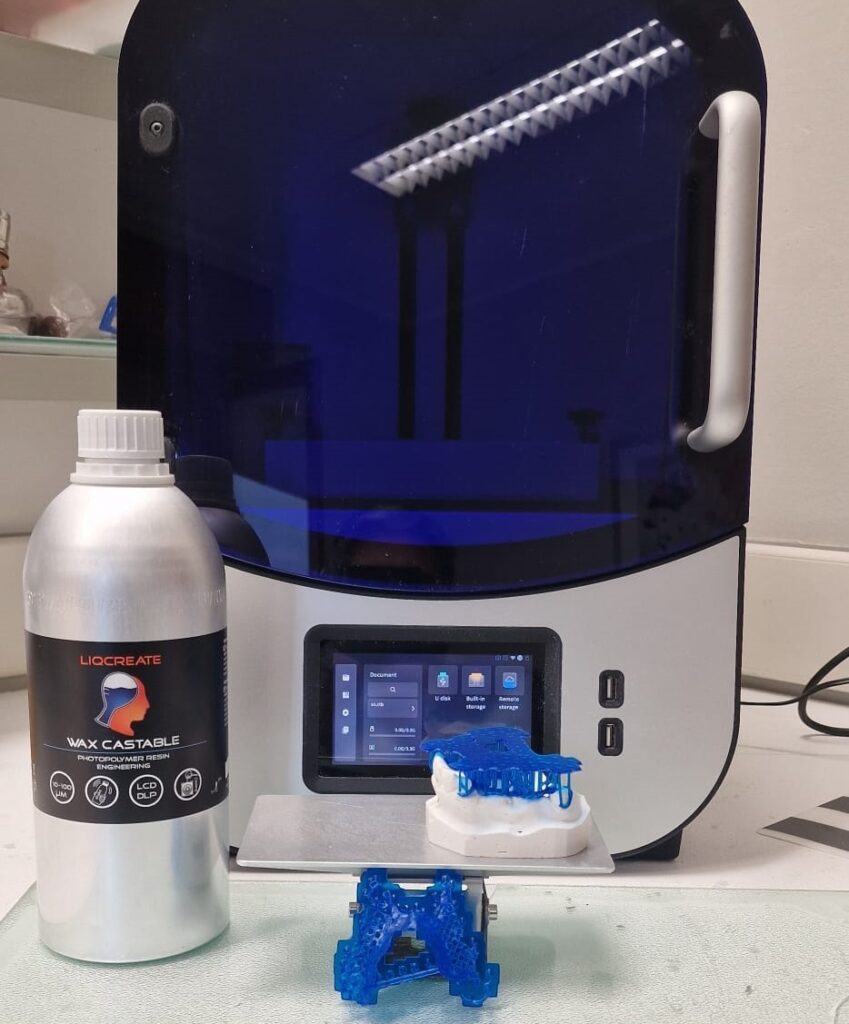

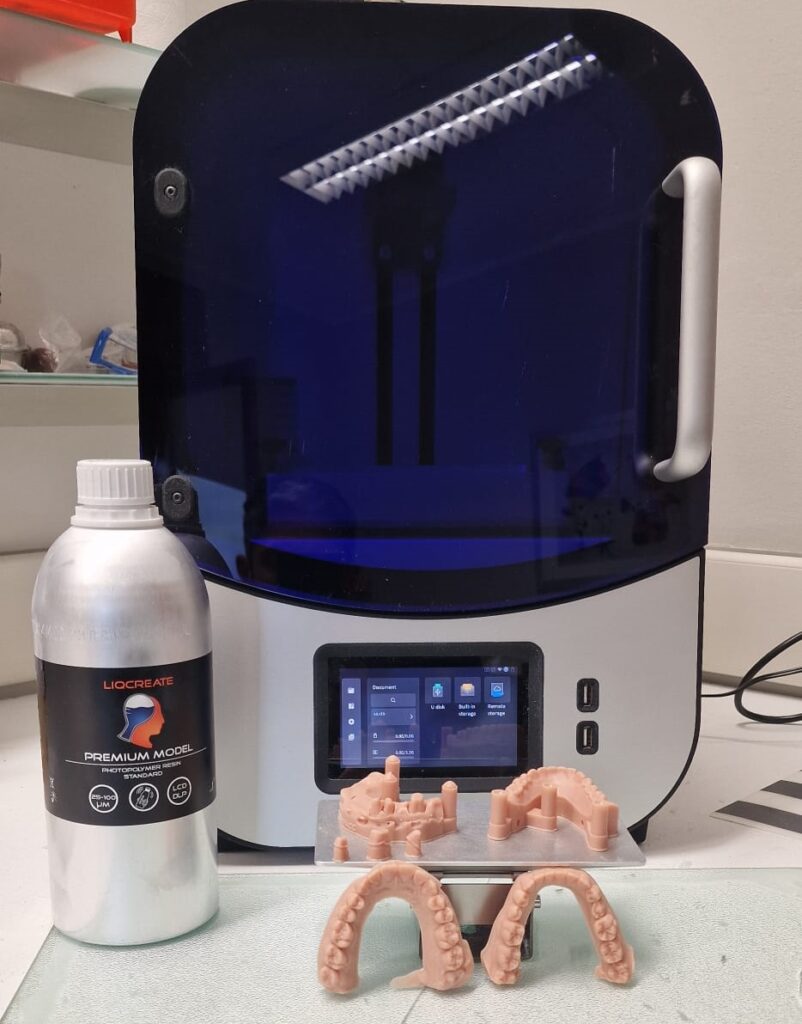

Image by MTC: Dentum Studio resin 3D-printer by Meccatronicore.
Dentum Studio resin 3D-printer specifications.
- – Build Volume: 160x 85 x 150 mm.
- – Minimum layer Height: 25 microns.
- – XY Resolution: 19 µm
- – LCD pixels: 9K
- – Third-Party Materials: Yes, 405nm resin
Contact us if you have any questions or when you need help with settings for Liqcreate resin on the MTC Dentum Studio or other resin based 3D-printers.
